Product Description:

The low temperature self-regulating heating cable developed by our company is widely used in the heating, anti-coagulation and anti-freezing of pipelines and storage tanks of civil solar energy, geothermal heating, fire protection, petroleum, chemical, steel, electric power and environmental protection industries. The heating cable is suitable for general areas, hazardous areas and corroded areas.

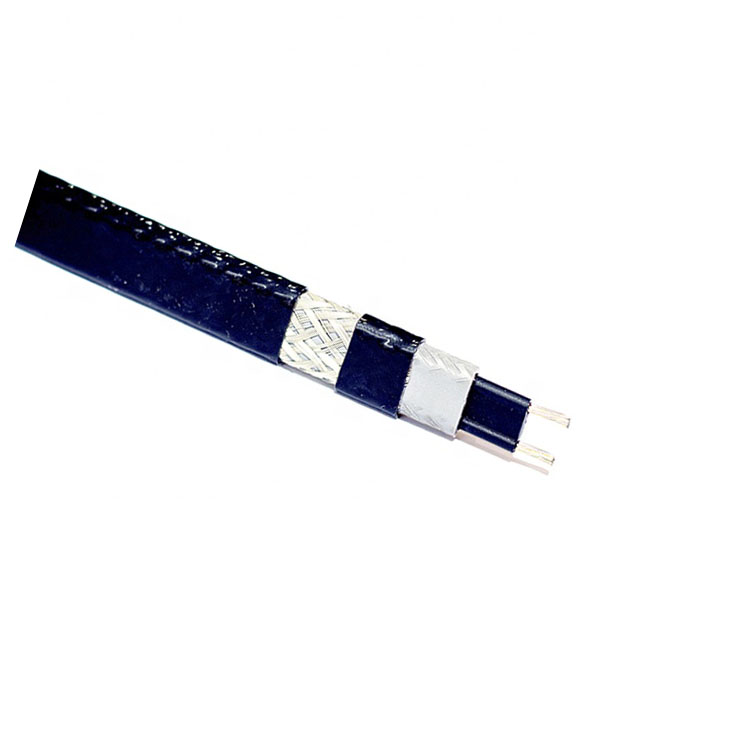

Product Structure:

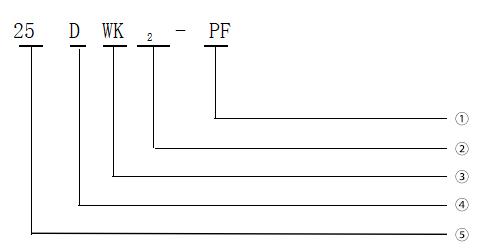

Temperature grade: low temperature (D) series

Structure type: basic type (J), shielded explosion-proof type (P), protective type (F), explosion-proof protection type (PF), explosion-proof and anti-corrosion type (PF2, PF46)

Voltage level: 12V, 24V, 36V, 110V, 220V, 380V

10°C nominal power: 10W/m, 15W/m, 20W/m, 25W/m, 30W/m

Explosion-proof mark: ExeIIT6 Gc

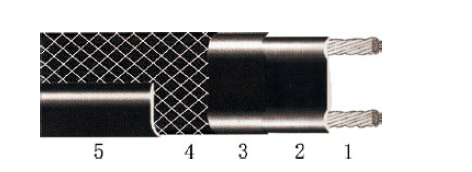

(1) Copper core bus wire: 7×0.50, 19×0.32

(2) Heating core belt: ordinary PTC, flame retardant PTC, fluorine-containing PTC.

(3) Insulation layer: modified polyolefin, flame retardant polyolefin, fluorinated polyolefin, perfluorinated material.

(4) Shielding layer: tinned copper wire braid or other metal wire braid, covering density≥75%.

(5) Sheath layer: modified polyolefin, flame retardant polyolefin, fluorinated polyolefin, perfluorinated material.

Technical Parameter:

(1) Standard color: black/blue

(2) Temperature range: the maximum maintenance temperature is 65±5 °C, and the maximum temperature is 90°C (max exposure temperature)

(3) Construction temperature: polyolefin minimum -40°C, fluorine material minimum -30°C

(4) Starting current: ≤0.5A/m

(5) Thermal stability: After the thermal performance test of the electric heating cable, its power should be maintained at 90% of the original value.

(6) Bending radius: 25.4mm at-20°C and 35mm at-30°C

(7) Insulation resistance: The insulation resistance between the electric heating conductor and the metal shield should not be less than 500 MΩ.

Advantages:

(1) Automatically adjust the output power and compensate according to the actual heat required by the heat tracing system, which is a new generation of energy-saving constant temperature heater.

(2) It can be arbitrarily shortened or extended within a certain range,and it can be overlapped multiple times without the concern of high temperature hot spots and burnout.

(3) Low temperature, fast start, uniform temperature, because each part can be automatically adjusted due to the temperature change of the heat-tracing place.

(4) Easy installation, simple maintenance, all-day service, high level of automation, and low operating and maintenance costs.

(5) It is safe and reliable, widely used, no pollution to the environment, long service life.

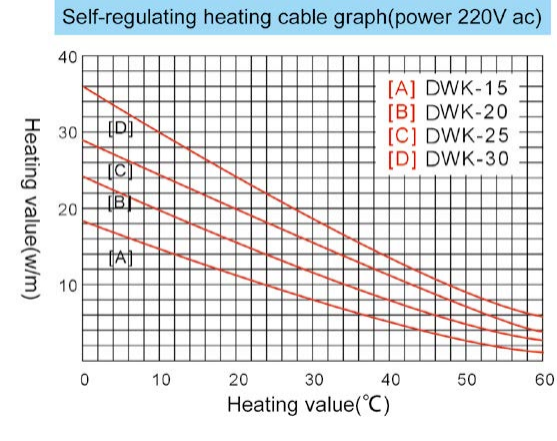

Self-regulating heating cable graph(power 220V ac)

Applicable area:

The low temperature self-regulating heating cable is widely used in the heating, anti-coagulation and anti-freezing of pipelines and storage tanks of civil solar energy, geothermal heating, fire protection, petroleum, chemical, steel, electric power and environmental protection industries. The electric heating belt is suitable for general areas, hazardous areas and corroded areas. Using with the explosion-proof power supply junction box, it is suitable for division 1, 2 and explosive mixture gas "T4-T6" group of the factory that are not directly impacted by external forces.

The maximum allowable use length of circuit breaker for low temperature heating cable
