Classification by material:

● PFA (Soluble polytetrafluoroethylene) composite pipe

● FEP (Polyfluoroethylene-propylene) composite pipe

● PVDF (Polyvinylidene fluoride) composite pipe

● Stainless steel composite pipe

● Silicon steel pipe

Classification by type of heating cable:

● Self-controlling temperature heating belt composite pipe

● Parallel constant power heating belt composite tube

● Mineral insulated heating cable composite tube

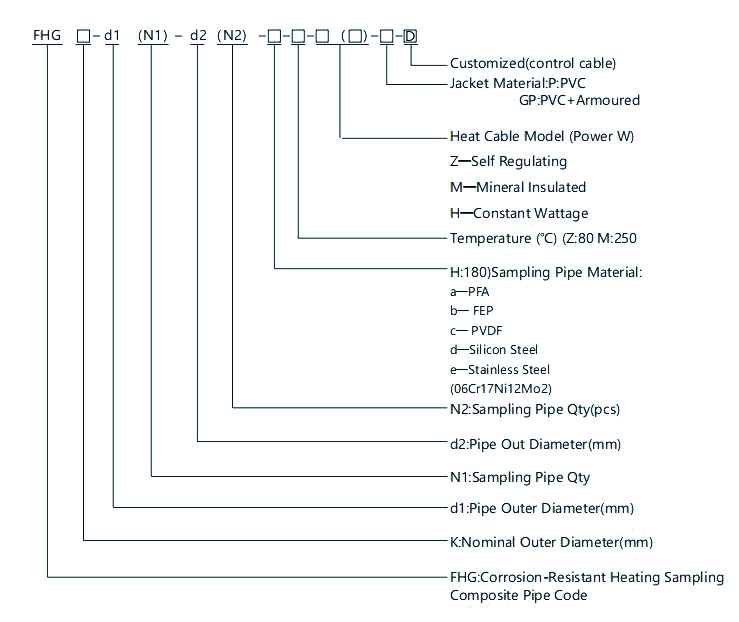

Product Model:

FHG45-8(3)-6(2)-a-80-Z(50)

Above: FHG- Anti-corrosion heating sampling composite pipe;

45: Outer diameter of composite pipe;

80: Maximum working temperature in the sampling tube(℃);

Z: Self-regulating heating cable;

50: Product power 50W/m;

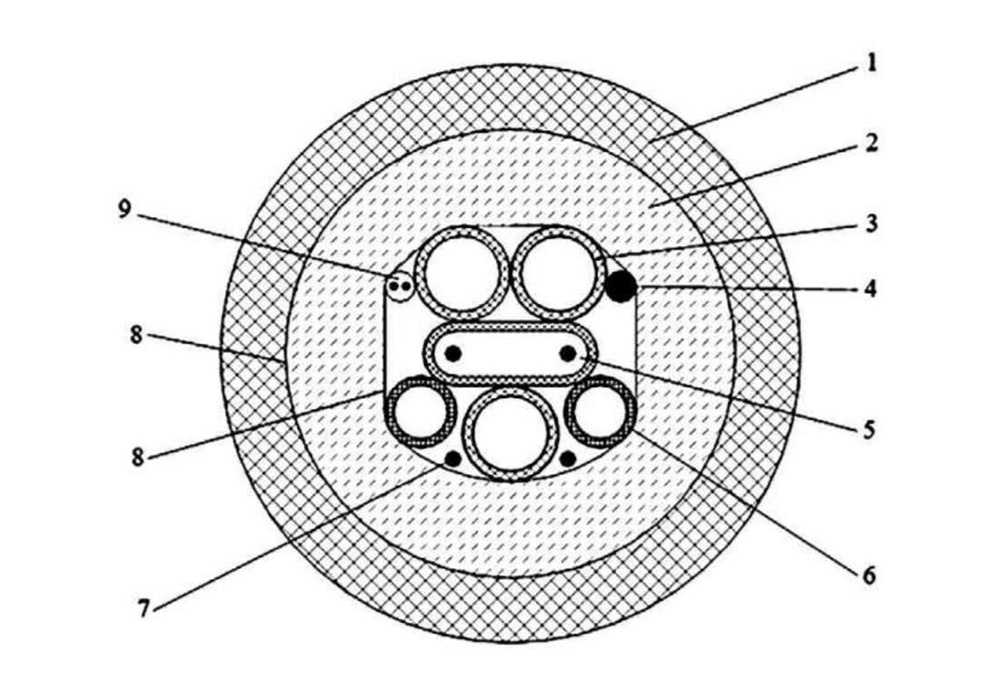

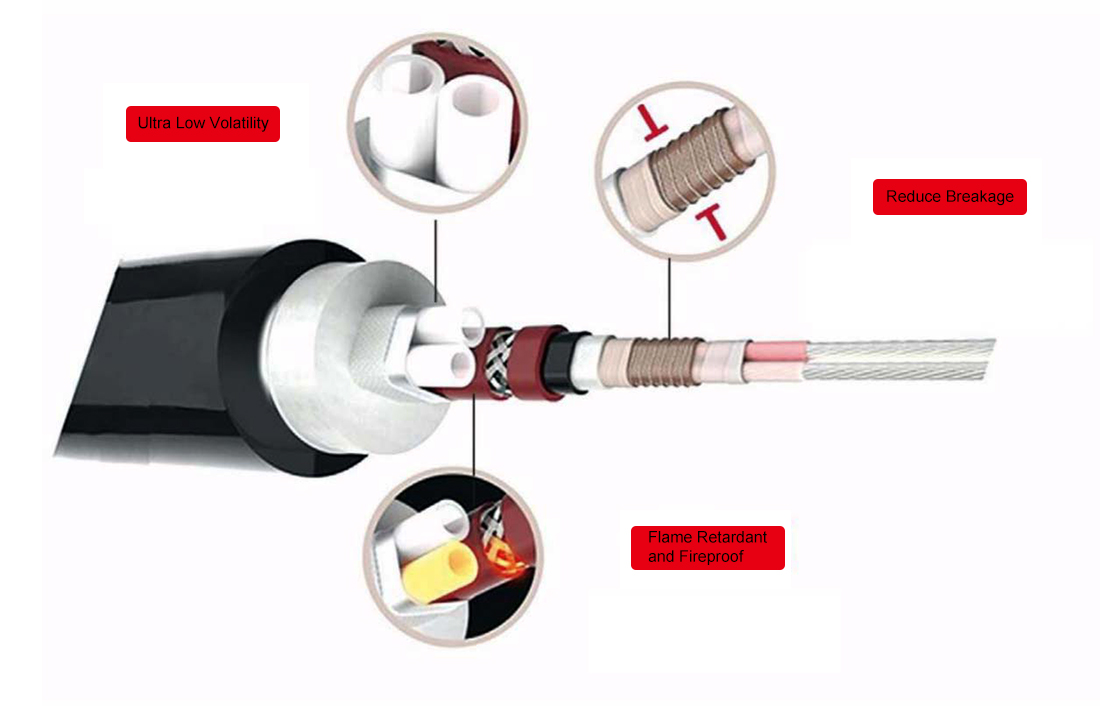

Basic Structure Diagram:

1- Jacket 2- Insulated layer 3- Sampling Composite Pipe 4- Power cable 5- Heat Tracing Cable 6- Sampling composite pipe 7- Wire 8- Shielding reflective film 9- Compensation cable

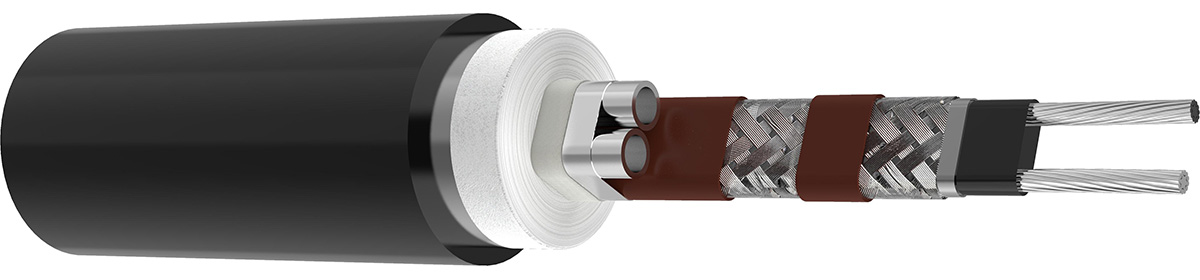

Technical parameters of self-controlling temperature heating belt composite pipe:

①Electrical indicators

a. Self-controlling temperature The nominal power of the heating belt is 10W/m～50W/m (output power at 10℃);

b. Rated voltage: 24V、36V、220VAC;

c. Using length ≤100m;

d. Equipped with circuit breaker current value 6A～32A, Distribution switches are equipped with leakage protectors.

②Thermal Index

a. At an ambient temperature of -20℃ and a wind speed of 15m/s, the temperature inside the pipe is maintained at 20~80℃;

b. The sampling tube can withstand corrosion from various acid and alkali media and has a pressure resistance of 1.0Mpa without leakage;

c. The sampling tube can work for a long time at temperatures <80°C.

③ Installation metrics

a. Minimum radius of curvature of composite pipe 0.5m;

b. Maximum continuous use length 100m;

c. Minimum install temperature -20℃;

d. Minimum fixed distance: 5m in vertical direction, 2m in horizontal direction;

e. It is strictly prohibited to twist or drag on the ground during construction. The pipe head sheath is only allowed to be disassembled when installing the joint.

f. The sampling composite pipe should be avoided from being laid together with the power cables.

Note: Twisting and dragging on the ground are strictly prohibited during construction. The pipe head sheath is only allowed to be disassembled when installing the joint.

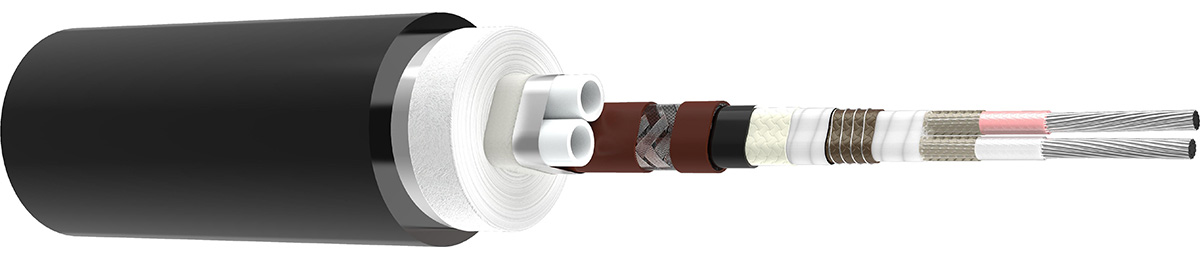

Parallel constant power heating belt composite tube technical parameters:

① Electronic Index

a. Nominal power of parallel constant power heating tape 30W/m、40W/m、 50W/m;

b. Rated voltage: 220VAC;

c. Use length ≤150m;

d. Equipped with circuit breaker current value 6A～32A, distribution switch with leakage protector;

e. Must be equipped with temperature control instrument.

② Thermal index

a. Under the condition of -20℃ ambient temperature and 15m/s wind speed, the temperature inside the pipe is maintained at 40~180℃;

b. The sampling tube can withstand corrosion from various acid and alkali media and has a pressure resistance of 1.0 Mpa without leakage.

c. The sampling tube can work for a long time at temperatures <100°C.

③ Install Index

a. Minimum radius of curvature of composite pipe 0.5m;

b. Maximum continuous use length 100～150m;

c. Lowest install temperature -20℃;

d. Minimum fixed distance: 5m in vertical direction, 2m in horizontal direction;

e. It is strictly prohibited to twist or drag on the ground during construction. The pipe head sheath is only allowed to be disassembled when installing the joint.

f. The sampling composite pipe should be avoided from being laid together with the power cables.

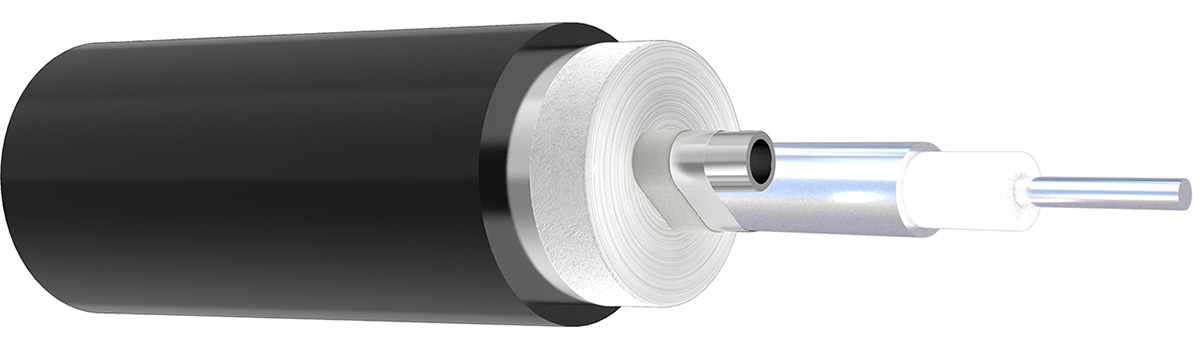

Technical parameters of mineral insulated heating cable composite pipe:

① Electronic Index

a. Nominal power of mineral insulated heating cables 10W/m～150W/m;

b. Rated Voltage: 220VAC;

c. Use length 5～50m (maximum heating length is different for different powers);

d. Equipped with circuit breaker current value 6A ~ 32A, distribution switch with leakage protector;

e. Must be equipped with temperature control instrument.

② Thermal index

a. Under the condition of -20℃ ambient temperature and 15m/s wind speed, the temperature inside the pipe is maintained at 200℃～400℃;

b. The sampling tube is resistant to various acids. Alkaline medium corrosion, pressure resistance 1.0Mpa, no leakage;

c. The sampling tube can work at temperatures <400℃ for a long time;

③ Install Index

a. The minimum radius of curvature of composite pipe is 0.6m;

b. Maximum use length 50m;

c. Minimum install temperature -20℃;

d. Minimum fixed distance: 5m in vertical direction, 2m in horizontal direction;

e. It is strictly prohibited to twist or drag on the ground during construction. The pipe head sheath is only allowed to be disassembled when installing the joint.

f. The sampling composite pipe should be avoided from being laid together with the power cables.

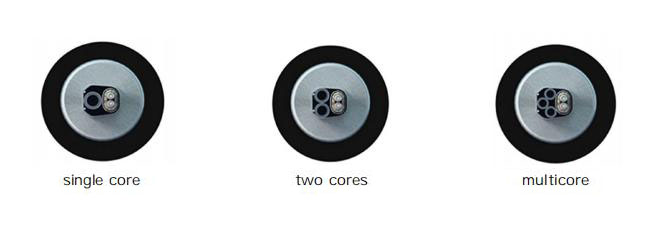

List of models, structures and cross-sections of anti-corrosion heat tracing sampling composite pipes:
