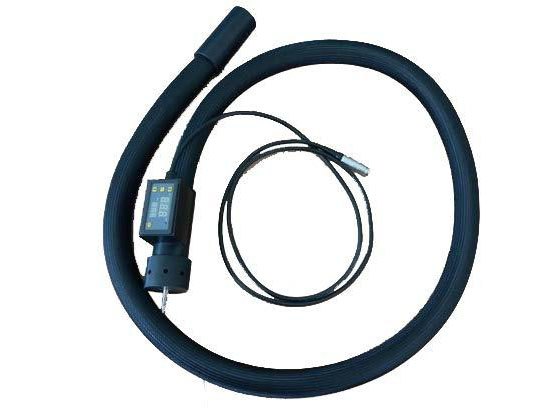

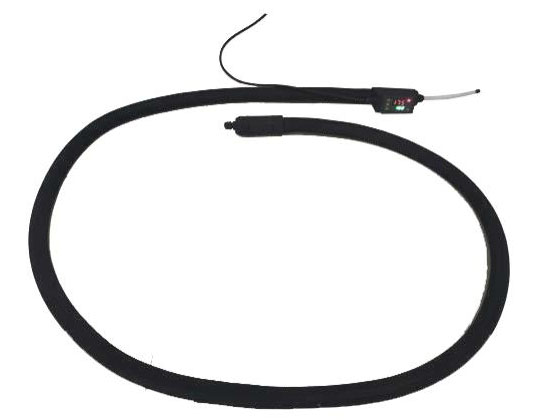

Portable Corrosion-Resistant Heating Sampling Composite Pipe
Overview:

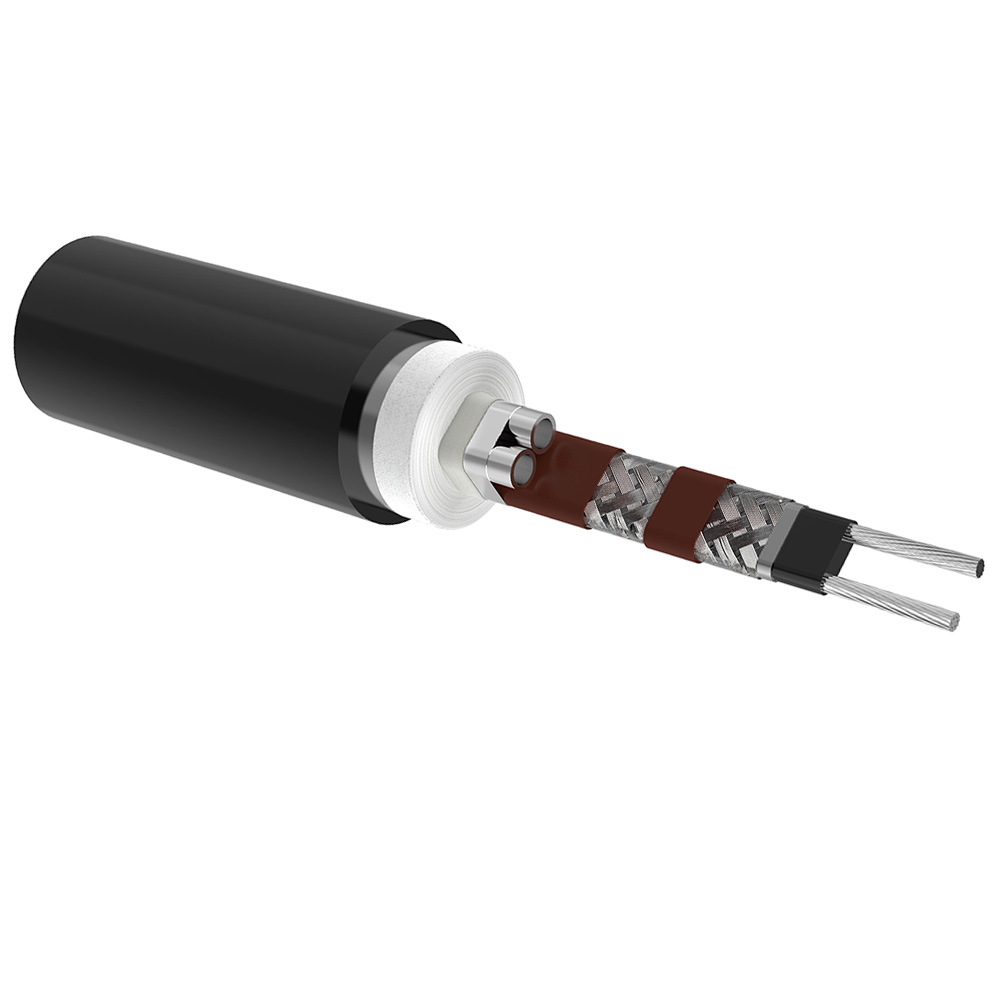

Armored corrosion-resistant heating sampling composite pipe is composed of sampling pipe, protective armored track, electric heating tape, insulation layer, etc. Compared with similar competing products, its compression resistance and thermal insulation properties are significantly improved. It can turn an irregular inner core into a regular cylindrical whole while maintaining its flexibility.
Product Advantage:
● Can be used directly after being powered on and is easy to carry;
● Integrated manufacturing, long life;
● No cold spots or breakpoints throughout the process;
● Sample gas heating temperature: 120 ℃, 150℃, 180℃;

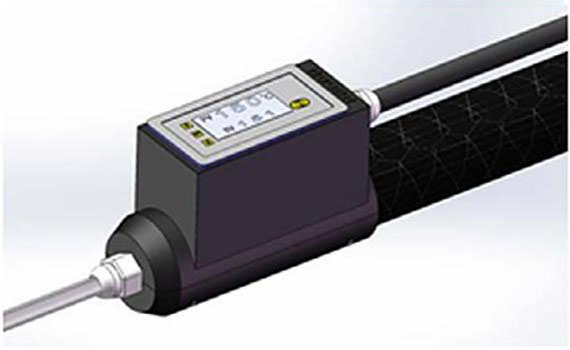

● Heating temperature control: automatic temperature control, external temperature control unit;
● Can also provide power for portable samplers;

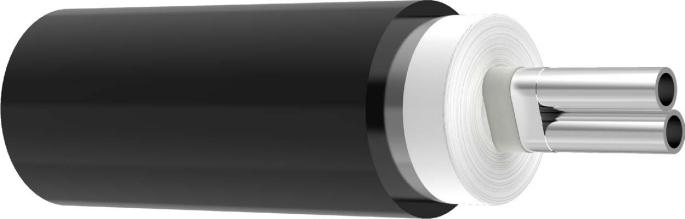

Corrosion-Resistant Sampling Composite Pipe (without heating):
The corrosion-resistant sampling composite pipe is composed of one or several fluoroplastic pipes or metal pipes with good corrosion resistance as the conduit, composite aluminum foil and glass fiber as insulation, and PVC or PVC armor as the outer sheath, and is extruded. Methods are combined into an integrated industrial management system. It is mainly used in the transmission of fluid, steam or other gases to reduce transmission heat loss and protect personal safety (thermal insulation).

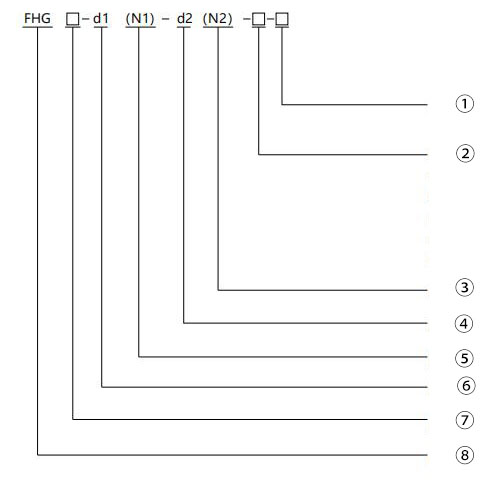

Product Model:
1. Jacket material: P:PVC, GP:PVC+Armoured
2. Sampling pipe material:
a一PFA
b一 FEP
c一 PVDF
d一 silicon steel
e一ss (06Cr17Ni12Mo2)N2:
3. sampling pipe(pcs)
4. d2: sampling pipe dia(mm)
5. N1: sampling pipe qty
6. d1: pipe out dia (mm)
7. K: nominal dia(mm)
8. FHG: Corrosion-resistant heating sampling composite pipe code
FHG45-8(3)-6(2)-a:
Stand for:FHG: anti-corrosion heating sampling composite pipe;
45:out diameter of composite pipe;
8(3)-6(2)-a:
Made of PFA, 3 sampling tubes with an outer diameter of 8mm and 2 sampling tubes with an outer diameter of 6mm

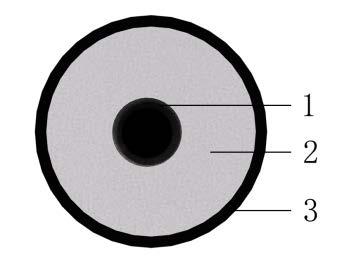

Product Structure:
1-Material of Pipe:
PFA、FEP、PVDF、S316、SILICON STEEL;
2-Thermal insulation material:
fiberglass wool;
3-Jacket:
Material: PVC/PVCarmoured;
Operating temperature: -20℃;
Min bending radius: 5 times the outer diameter of the pipe and cable
