Explosion-proof Heat Resistance (Temperature Sensor)
Overview:
A temperature sensor is a meter that converts temperature variables into a standardized output signal that can be transmitted. It is mainly used for measurement and control of industrial process temperature parameters. It is equipped with display instruments to detect the actual temperature of the surface of the pipeline at any time.
Our company customizes various explosion-proof temperature sensors such as PT100, K type, Cu50 type according to customer requirements.
Product Description:
1) The sensor has a connection box for convenient field wiring;

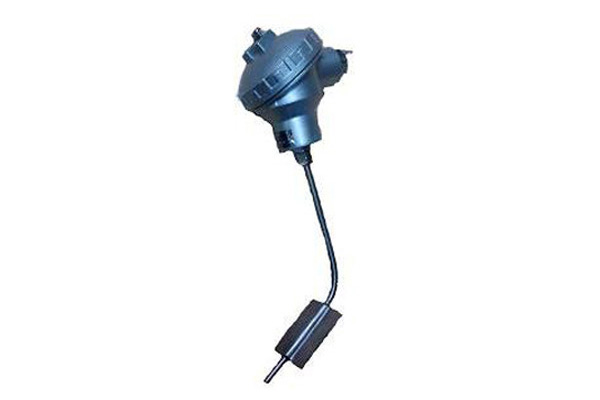

2) The sensor is dedicated to detecting the surface temperature of the pipeline, and the probe is in a curved form, which is convenient for the connection box of the sensor to be externally located outside the pipeline insulation layer.

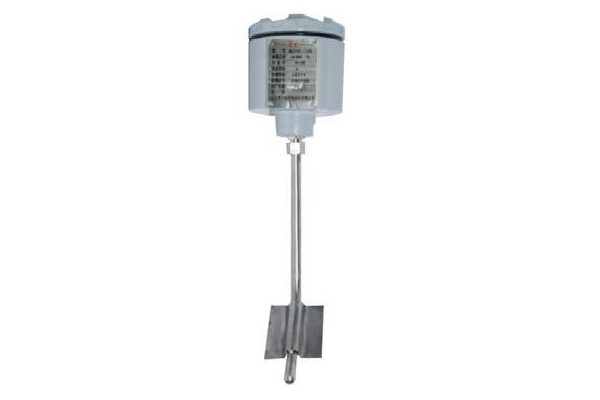

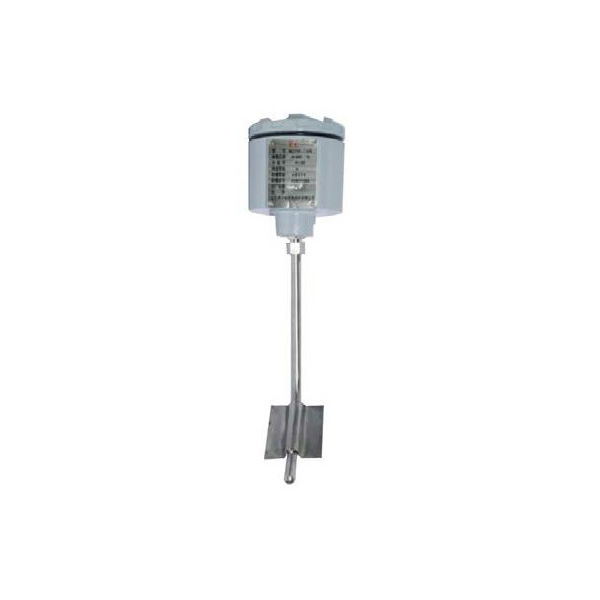

3) The part of the sensor that is in contact with the surface of the pipe has a stainless steel patch with a width of 4 cm, which is convenient for fixing and makes the probe contact the surface of the pipe to the maximum extent, and improves the accuracy of detecting the surface temperature of the pipe.
WZPK-138
WZPK-148
Properties:
| Description | Type | Graduation | Measure Range | Size | Tolerance Level | Ex-proof Grade | Protection Material |
| Thermal Resistance | WZPK-138 | Pt100 | -50-300℃ | L=280mm | A | Without | 304 |
| Explosion-proof Heat Resistance | WZPK-148 | Pt100 | -50-300℃ | L=280mm | A | ExdⅡCT1-T6Gb | 304 |
